Chapter 10: Repetition and Cloning

Digital tools empower content producers to parody graphic content both on and off of the screen. Media-makers have the ability to change the appearance of virtually anything with tools such as copy, paste, mask and clone. So the question is: given the opportunity to change any image, message, or text, where would you begin? Your answer depends upon your interests, but usually emerges from political tension. In other words, the oppressed can reclaim messages of the dominant paradigm by altering the symbolism embedded in words or images in the physical and/or digital world. These messages might appear in museums, on city streets or in cyberspace. The “subversive” part of the message-making is the way in which the aesthetics of the altered media rely upon the viewer’s visual and intellectual understanding of the dominant culture prior to media confrontation. The Billboard Liberation Front and The Anti-Advertising Agency create work that illustrate this idea. Not too surprisingly, this counter-cultural, playful method of protest has already been co-opted by the advertising industry. In No Logo, Naomi Klein illustrates how advertisers are utilizing methods common to contemporary artists to create brand awareness. She writes, “Pepsi's on-going threat to project its logo onto the moon's surface hasn't yet materialized, but Mattel did paint an entire street in Salford, England, ‘a shriekingly bright bubblegum hue’ of pink - houses, porches, trees, road, sidewalk, dogs, and cars were all accessories in the televised celebrations of Barbie Pink Month. Barbie is but one small part of the ballooning $30 billion ‘experiential communication’ industry, the phrase now used to encompass the staging of such branded pieces of corporate performance art and other ‘happenings.’” (See No Logo, Naomi Klein, New York: Picador 9-12.)

IMAGE: BLF


The Billboard Liberation Front is a group of San Franciscan message-makers who aim to repurpose and “improve” billboard messages by painting or pasting on top of preexisting billboards. The group began their mission in 1977 and have grown into a worldwide phenomena by collecting images on the web. From The Billboard Liberation Front Manifesto:

“And so we see, the Ad defines our world, creating both the focus on "image" and the culture of consumption that ultimately attract and inspire all individuals desirous of communicating to their fellow man in a profound fashion. It is clear that He who controls the Ad speaks with the voice of our Age.” (Jack Napier and John Thomas)

Read the entire manifesto at:

http://www.billboardliberation.com/manifesto.html

IMAGE: People Products 123, The Anti-Advertising Agency, project website: http://peopleproducts123.com/


The Anti-Advertising Agency creates subversive media in opposition to the role of advertising in contemporary society. Many of their projects are participatory, which means that viewers become “doers” or art-makers. In People Products 123, participants download package designs that feature images and information about the workers responsible for producing the consumable product. The package designs are to be printed by the participant, repackaged around the product, and “shop-dropped” in the store where an unassuming shopper would purchase the product contained in the newly informative packaging.

Exercises 1 & 2: Original images and final file result

Fig10 Ex1 origimg.jpg

We begin with a group image of the first all female crew that NASA sent to space.

Fig10 Ex1 origimg02.jpg

Also, we'll use a cropped image of Amelia Earhart.

Fig10 Ex1 finalimg.jpg

In the final image, Amelia Earhart's head replaces the head on the center figure of the NASA crew and the image is rendered in black and white.

http://commons.wikimedia.org/wiki/Image:Amelia_Earhart_1937_GPN-2002-000211.jpg

http://commons.wikimedia.org/wiki/Image:C-130_-_First_all_female_crew.jpg

These were all sample ideas that could have been used for this chapter. (Leave the links here)

http://commons.wikimedia.org/wiki/Category:Group_photographs

http://commons.wikimedia.org/wiki/Image:St_Petersburg_Union_of_Struggle_for_the_Liberation_of_the_Working_Class_-_Feb_1897.jpg

http://commons.wikimedia.org/wiki/Image:Bonesmen_clock.jpg

http://commons.wikimedia.org/wiki/Image:Solvay_conference_1927.jpg

http://commons.wikimedia.org/wiki/Image:369th_15th_New_York.jpg

http://commons.wikimedia.org/wiki/Image:EL-1996-00089a.jpg

http://commons.wikimedia.org/wiki/Image:GroupPhoto2007.01.14.004.JPG

http://commons.wikimedia.org/wiki/Image:Labor_1901b.jpg

http://commons.wikimedia.org/wiki/Image:Portrait_of_ASTP_crews.jpg

http://commons.wikimedia.org/wiki/Image:Sokol_sport_costumes.jpg

http://commons.wikimedia.org/wiki/Image:The_Fuller_Court.jpg

Exercise 1: Replace part of one image using the Clone Tool

In this exercise, we will use two images in the public domain from the US government. The first all female crew can be downloaded from Wikimedia at this link:

http://commons.wikimedia.org/wiki/Image:C-130_-_First_all_female_crew.jpg

A historic image of Amelia Earhart can be downloaded from this link:

http://commons.wikimedia.org/wiki/Image:Amelia_Earhart_1937_GPN-2002-000211.jpg

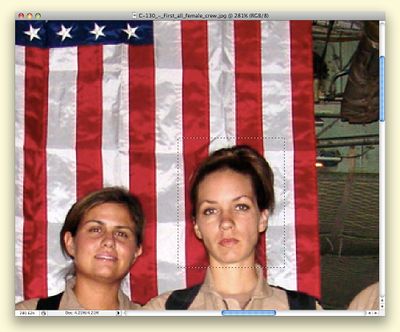

1. Open the file C-130_-_First_all_female_crew.jpg (downloaded from Wikimedia) in Photoshop. Zoom in on the central figure of the crew. We will start by replacing her head with a sample of the flag. Create a rectangular selection around her head with the Rectangular Marquee Tool.

Fig10 Ex1 01.jpg

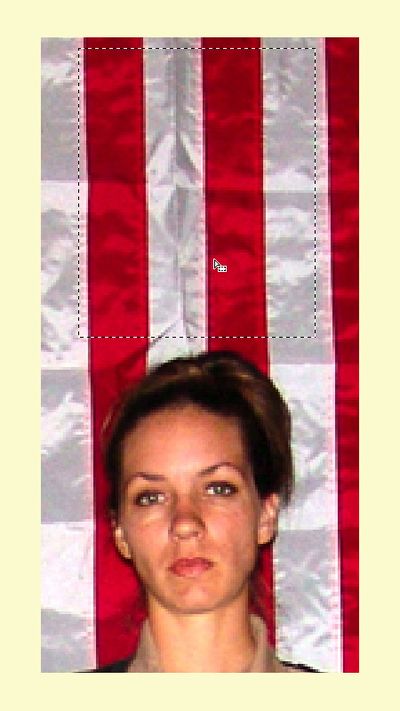

2. As long as any selection tool is active (and specifically, the Move Tool is not active), when you place the cursor inside the selected area the tool changes into a white arrow with a small rectangular selection icon. Click and drag the rectangular selection straight above the figure's head - you are only moving the selection. No part of the image is moving.

Fig10 Ex1 02.jpg

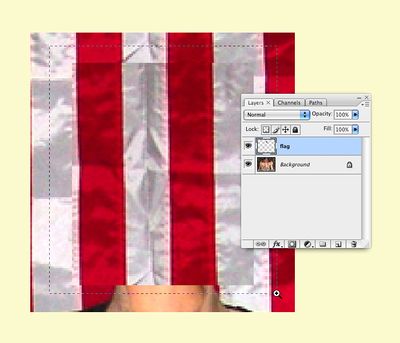

3. Copy the flag from the background layer and paste it. Edit > Copy followed by Edit > Paste will create a new layer. Name the new layer, "flag."


Hotkey: CMD+J is the hot key for "float," which will copy and paste part of a layer onto a new layer directly on top of the selection.

Fig10 Ex1 03.jpg

4. The head has been replaced by a sample of the flag on a new layer. The Clone Tool is used to replace small areas of a layer with a sample of an image. The Clone Tool is applied with a brush. Using a soft brush will make the cloned sample appear to blend into the original image, even though we will do all of our cloning on a new layer. Be careful with your application of the Clone Tool. The soft brush creates a little bit of a blur on the image. A small amount of blur is necessary in order for the sample to blend in, but clicking with the soft brush repeatedly will result in a blurry area in your image. The purpose of cloning is to create an unidentifiable image hoax. Creating a blurry area on the image will be draw attention to that area. In order to achieve the hoax, the clone must be made in such a way that the viewer is deceived!

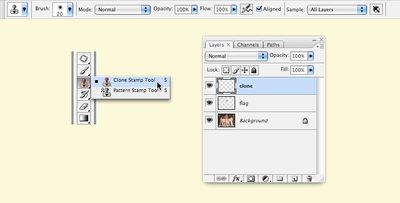

Pick up the Clone Stamp Tool from the Tool Palette. Set the brush to about 20 pixels. Check the "Align" button and make sure that "Sample All Layers" is selected from the pulldown menu in the Options Palette.

Create a new layer called "clone."


Tip: Click on the down arrow next to the brush in the Options Palette to modify the brush settings, such as the hardness or softness and the brush size. The open and close bracket keys on the keypad (usually above and slightly diagonal from the return key) are the hot keys used to increase and decrease the brush size.

Fig10 Ex1 04.jpg

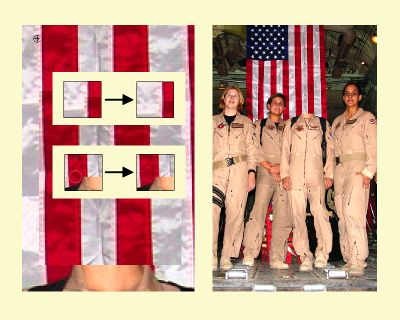

5. Now for the most important part of this exercise - sample parts of the flag in order to blend the areas around the edges where the copy and pasted image is an obvious manipulation. The Clone Stamp Tool requires that part of an image is sampled before it is applied to another part of the document. Sample part of the flag near the edge between white and red by holding OPT and clicking in that area. Then position the mouse on top of the corner where the pasted flag needs to be blended and click once to cover it with a soft, brushed sample. Pay close attention to the brush work. Determine if the first click is blended or not by looking at the surrounding values. Decide if your new sample is blending in. If it does, move on to the next area. Always OPT+click to create a new sample before brushing. If the first click did not blend perfectly (it probably did not - this takes some getting used to), use CMD+Z to undo the last step and try it again.

Work around all of the edges by creating a new OPT+click to sample the flag and then click with the brush to apply the clone. CMD+Z will be used often in this process! We finished the clone in about 30 precise mouse clicks.

Fig10 Ex1 05.jpg

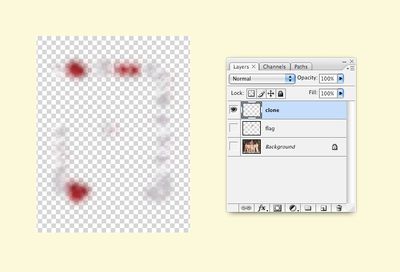

6. View the clone layer by turning the eyeball icons off of all of the other layers. Here is what ours looked like when we were finished:

Fig10 Ex1 06.jpg

Exercise 2: Add Amelia Earhart to the image of the crew

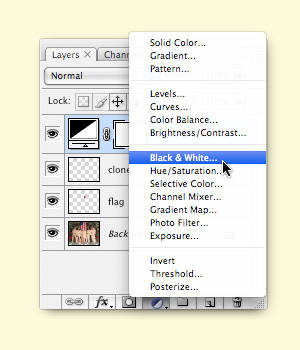

1. Since the image of Amelia Earhart was originally a black and white photograph, we should change the image of the Air Force crew into grayscale. Use a black and white adjustment layer on top of the clone layer. Apply the adjustment in the Layers panel. Save your work in Photoshop format. The file should have the .psd extension.



Fig10 Ex2 01.jpg

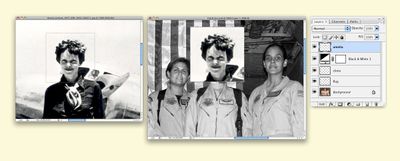

2. Open the image of Amelia Earhart, select her head and neck with the Rectangular Marquee tool and choose Edit > Copy. Toggle back to the Photoshop document and choose Edit > Paste. Use Edit > Free Transform (Command+T) and hold Shift while scaling Amelia Earhart's head down so it is in proportion with the body. Name the new layer Amelia.



Fig10 Ex2 02.jpg

Exercise 3: Add a layer mask

Add a mask over an image to hide part of it. Masks do not delete or alter image data, they simply hide or show parts of images. Masks operate in black (hidden), white (revealed), and shades of gray (transparent, partially hidden). We will use a layer mask on the Amelia layer to blend her into the new background.

Note: Other types of masks include clipping masks (see Exercise 4 in Chapter 9) and vector masks, where vector data instead of bitmap data determines what is black and what is white. We will work with layer masks in this chapter and in Chapter 11.



Watch Out: Do not delete image data. Do not use the eraser. Using the eraser is destructive editing. Now that you are learning to use masks, you can practice making non-destructive edits. This is so important that it is the dominant topic in Chapter 11.



Key Command: Press the letter d on the keypad to load black and white as the default colors in the foreground and background color chips. Press the x key to switch the foreground and background colors.

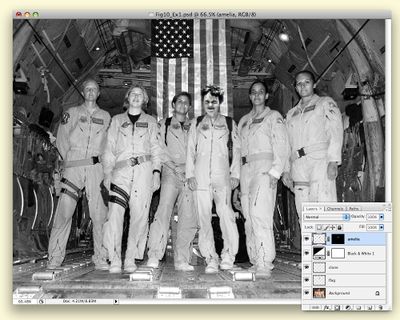

1. Create a layer mask on the Amelia layer with the Add layer mask button at the bottom of the Layers panel. This mask will hide the background around Amelia's head. Notice that the layer now has an icon for the image and an icon for the mask. The mask is currently active — there is a frame around the mask icon.

2. Click on the Brush tool and make sure that the default colors are loaded into the foreground/background color chips (black as foreground, white as the background color) by clicking on the small black/white color chip icon to the top left area of the actual color chips in the Tools panel.

3. Notice that the icon for the mask is white in the Layers panel. Since everything on the layer is revealed, the entire mask is white. Use the Brush tool with black paint on the mask in order to hide the background. If you make a mistake, switch to white paint to retrieve hidden parts of the image. Practice painting with black and white paint. Paint with different size brushes and notice what happens with a soft or hard brush, or with the brush set at different opacities.

We used a soft brush for the background area and kept it far away from Amelia's head. As we brushed closer to her hair, we reduced the opacity of the brush in the Options bar to about 40%. At a reduced opacity, clicking a few times near her head with black paint removes the background while keeping her hair from being cut to an unnatural shape.



Fig10 Ex2 03.jpg

Exercise 4: Burning and dodging

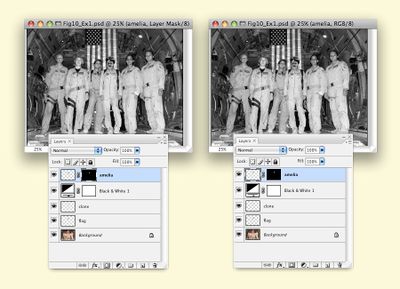

The last step is to correct Amelia's skin tones. Before you can do that, you will have to click back on the content portion — leaving the mask — of the Amelia layer. Photoshop indicates which part of the layer you are working on by bracketing the corners of its icon in the Layers panel. The title bar in the document also reflects the area that is currently active. If the mask is active, the Burn tool used in the next step will affect only the mask, so make sure Amelia’s layer content is active!



Fig10 Ex2 04.jpg

1. Notice that Amelia's photograph was taken outdoors, while the Air Force crew was indoors. The harsh light on Amelia's face is noticeably different from the light on the Airmen’s faces. We will make a quick adjustment to Amelia's skin tone in order to create a more realistic collage with the Burn tool. Burning and dodging are photographic manipulations native to the traditional darkroom. In the darkroom, additional exposure time increases the amount of light hitting the paper. This can be done selectively, resulting in a "burned" area of the image. Burning darkens the value of that portion of the print. Light can also be blocked during the exposure by dodging over image areas where the tonal values are too dark with a small tool, resulting in a lightened area of the print.

Use the Burn tool with a soft brush set at an exposure of about 10%. Quickly brush over Amelia's face with the Burn tool. Each time you click the mouse, the tones will darken.



Fig10 Ex2 05.jpg

2. Repeat Step 1 with the tool options set at both midtones and highlights.
